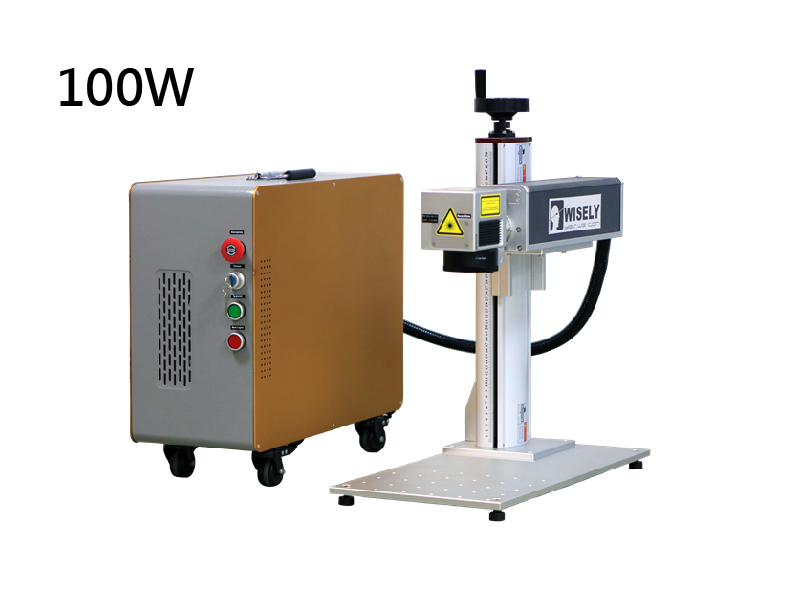

MOPA Fiber Laser Series - 20W / 30W / 50W / 100W
The WISELY MOPA Fiber Optic Laser Marker for metals and plastics is portable, small and easy to transport. The machine can be used with customized automatic matching system. It adopts JPT LP laser light source with superior laser beam, stable performance and high reliability. The machine can process all metal materials, such as gold, silver, copper, stainless steel, aluminum, etc.; and some non-metallic materials, is an all-round laser marking machine.
Remarks: The software can adjust the pulse width to achieve the effect of multiple colour changes on the metal.
Key Features：
．Long Lifespan of Fiber Laser Source：100 000 hours
．Low Consumption：<600W, more economical and environmentally friendly
．High Speed：Up to 7000mm/s, faster than traditional machines
．Superior Laser Beam：The definition is 1 micron, 10 times as standard products
．No Consumables：One marker can work for more than 4-6 years without any consumables
．No Need to Adjust Laser Beam Path：Fiber laser beam comes out from the fiber laser source directly
．High Precision and Speed Scan Head：Good sealing, capable of preventing dust and water, small volume,
compact.
．High Stability of Controller an USB Interface：Swift and stable transmission, route optmization, easy operation
．Strong Compatibility：PLT, BMP, JPG, TTF, DXF, SHX, AI and other formats from CorelDraw, AI, PS, AutoCAD,
Solidworks, etc.
．Integrated Air Cooling System：Better cooling effect than water-cooling effect in YAG laser, no maintenance
Application of WISELY LP Fiber Laser Marker：
WISELY LP Fiber Laser Marker can mark most metals, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.
．Samples：
．Mechanical Parts：Bearings, Gears, Standard Parts, Motor, etc.
．Machine：Panel Board, Nameplates, Precision equipment, etc.
．Hardware Tools：Knives, Tools, Measuring Tools, Cutting Tools, etc.
．Automotive Parts：Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
．Living Goods：Carfts, Zipper, Key Holder, Snaitary Ware, etc.

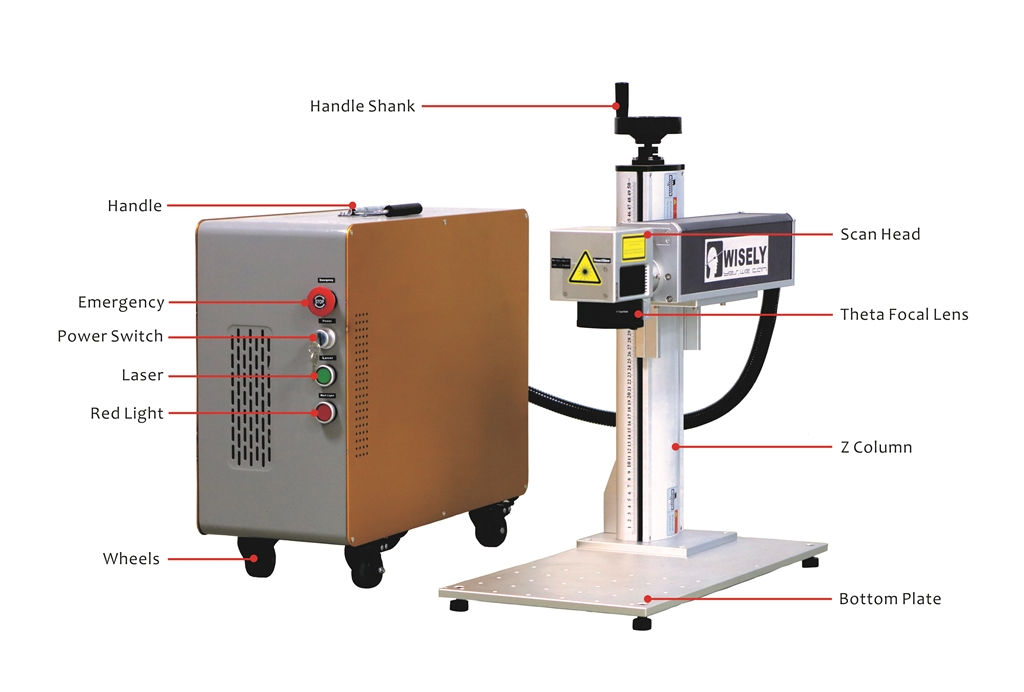

Basic components：
| ．JPT LP Fiber Laseer Source |
．Taiwan Meanwell Laser Power Supply
|
 |
 |
| Beam Quality M2<1.3; Average Power Stability < ±1.5% (8 hours); Laser Source Lifespan: 100,000 hours. |
Famous brand Taiwan Meanwell laser power supply. High quality ensures stable performance and long service life. |
| ．Controller & Software |
．Wavelength Photonics F-theta Lens
|
 |
 |
Genuine BJJCZ controller with stable performance and high reliability.
EZCAD easy to operate, strong compatibility, can support a variety of documents, PLT, BMP, JPG, DXF, AI, etc.
EZCAD is easy to operate, strong compatibility, can support a variety of documents, PLT, BMP, JPG, DXF, AI and more. |
Top brand Wavelengh F-theta lens. Small focusing spot, good marking effect, low power consumption and high stability. |
．WISE Scan Head
|
．Leadshine Drives and motors (if any)
|
 |
 |
Customized scanners for laser marking applications with speeds up to
7,000 mm/s with high accuracy, low temperature drift and high stability. |
Lower noise, lower vibration, smoother operation and higher torque, acceleration and precision. |
【W(wǎng)isely Series Raycus/ LP/ MOPA－Comparison of Processing Materials by Machine Type】
| Model |
Raycus |
JPT LP |
JPT M7 (MOPA) |
| Materials |
20W |
30W |
50W |
20W |
30W |
50W |
20W |
30W |
50W |
| Gold/Silver |
X |
O |
O |
X |
O |
O |
X |
O |
O |
| Copper |
X |
O |
O |
X |
O |
O |
X |
O |
O |
Copper White
Marking |
X |
O |
O |
X |
O |
O |
X |
O |
O |
Copper Black
Marking |
X |
O |
O |
X |
O |
O |
X |
O |
O |
Anodised Aluminium
White Marking |
O |
O |
O |
O |
O |
O |
O |
O |
O |
Anodised Aluminium
Black Marking |
X |
X |
X |
X |
X |
X |
O |
O |
O |
Stainless Steel
Colourful markings |
X |
X |
X |
X |
X |
X |
O |
O |
O |
| Mirror Coating |
O |
O |
O |
O |
O |
O |
O |
O |
O |
| Slate |
O |
O |
O |
O |
O |
O |
O |
O |
O |
| Leather |
O |
O |
O |
O |
O |
O |
O |
O |
O |
Stainless Steel
Black Marking |
O |
O |
O |
O |
O |
O |
O |
O |
O |
ABS
BLack Marking |
O |
O |
O |
O |
O |
O |
O |
O |
O |
| Cardstock |
O |
O |
O |
O |
O |
O |
O |
O |
O |
Click Here to check more models of Wisely Fiber Laser and Contact us to get more details !
| Model |
MY-M20F-III |
| Power |
20W / 30W / 50W / 100W |
| Laser Wavelength |
1064nm |
| Standard Marking Area |
150mm*150mm |
| Optional Marking Area |
70mm*70mm / 100mm*100mm / 200mm*200mm
300mm*300mm (Optional for the 300mm*300mm Spotlight Mirror, Contact us for more information) |
| Marking Depth |
≤1mm |
| Marking Speed |
7000mm/s |
| Minimum Line Width |
0.015mm |
| Minimum Character |
0.2mm |
| Repeated Accuracy |
±0.003mm |
| Fiber Laser Source |
JPT M7 |
| Scan Head |
WISELY |
| Controller（software） |
JZC Controller & EzCAD Software from China |
| Life Span of Fiber Laser Module |
100, 000 hours |
| Beam Quality |
M2 <1.3 |
| Focus Spot Diameter |
<0.01mm |
| Output Power of Laser |
10%~100% (Continuous Adjustable) |
| Output Frequency of Laser |
1-4000KHz (Continuous Adjustable) |
| Power Stability（8h） |
<±1.0%rms |
| System Operation Environment |
Windows XP / 7 / 8 / 10 -32/64bits |
| Cooling Mode |
Built-in Air Cooler |
| Voltage |
220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
| Power Requirement |
<450W |
| Dimensions |
20W / 30W / 50W : 550mm*600mm*600mm
100W : 700mm*400mm*650mm |
| Package Size |
20W / 30W / 50W : 600mm*750mm*850mm
100W : 850mm*500mm*870mm |
| Net Weight |
20W / 30W / 50W : 50kg 100W : 65kg |
| Gross Weight |
20W / 30W / 50W : 80kg 100W : 90kg |
