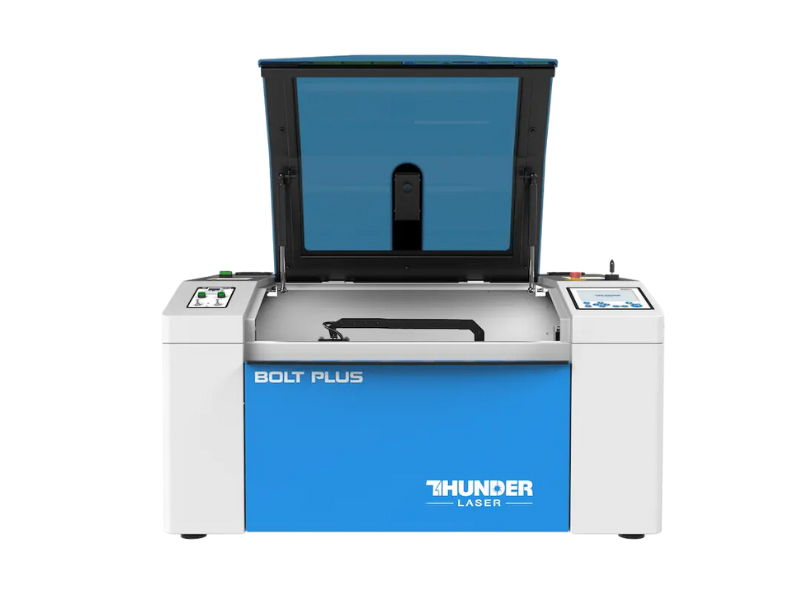

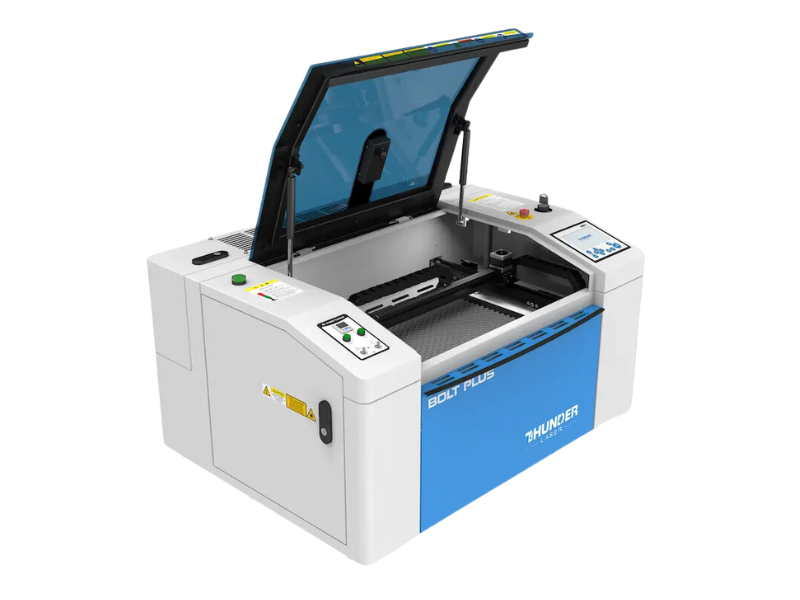

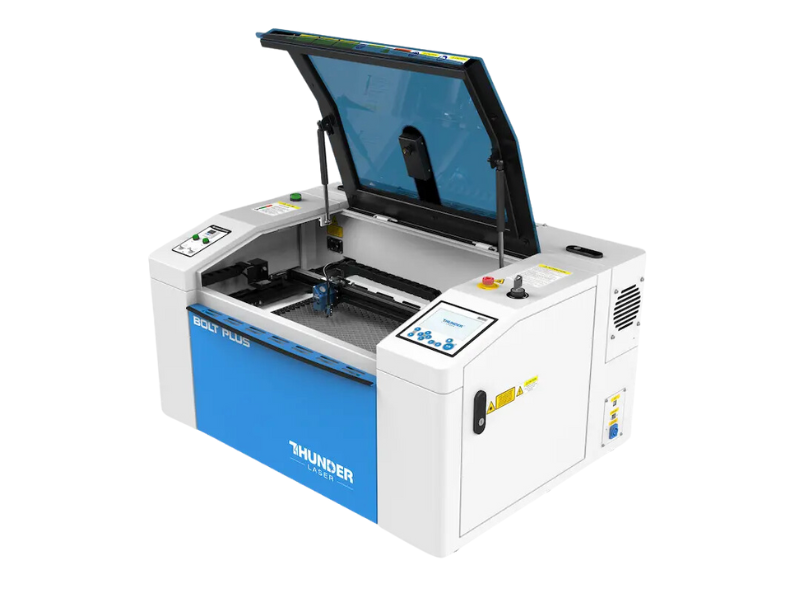

Thunder Bolt Plus Laser Engraver
Thunder Laser, a company specializing in the research and development of Laser cutting and engraving machine.
The Thunder Bolt from Thunder Laser USA is a desktop laser engraver that combines military-grade strength, high-speed engraving and easy-to-use touch-screen controls. This technological masterpiece features an integrated design and 1GB of memory for flawless operation, while its high-resolution camera ensures ultra-fine detail. With the ability to rotate for curved engravings, the Thunder Bolt promises a new level of creativity. Unleash your potential; turn your vision into reality with the Thunder Bolt.
Key Features
High Speed & High Efficiency
• 5G Acceleration
• 1500 mm/s Max Engraving Speed
• 5-Phase High Torque

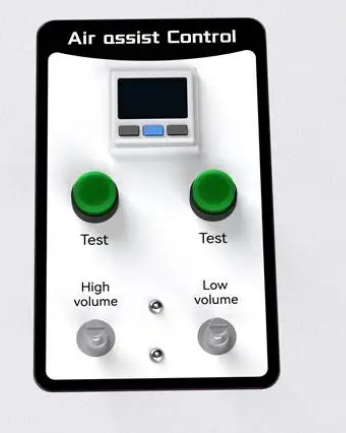

Dual Air Assist System+Barometric Detector
Accurate Steady
• High-Resolution RF Metal source ensures ultrarefined detailing
• Capable of 2000DPI with the 1.5"
User Friendly Touch Panel
• Easy-to-use Touch Screen Control
• 5-inch LED-lit touch display
• Explore more into visible function
Small, Compact and Powerful
• Intergrated Exhaust & Air Timer controlled Via the Thunder TL timer Low vibration and low noise running 1500mm/s, faster than the old version Bolt 500mm/s.
Rotary Capabilities Auto Focus
A Rotary allowing you to rotate cylindrical or oddly-shaped One click and autofocus is done. The red light indicator
items for more applications. allows for more precise focusing on curved surfaces.
5MP Camera Positioning RF Laser & Beam Expanders
An overhead Fish-Eye Camera with positioning accuracy Metal tube design provides a higher beam quality and
less than 1mm distortion.Drag and drop your design on longer life.A Beam expander is helpful for a finer laser
screen then start laser processing. output quality
Low Noise & Lower Vibration Integrated Design & 1GB Memory
Low Noise & Lower Vibration The noise is less than 50 Support 100 designs to be saved in the laser and
decibels in idle state. improve job management. Save your time.
Comparison With Old Version
| Model |
Thunder Bolt |
Thunder Bolt Plus |
| Apperance |
 |
|
| Specifications |
Dimensions（LxWxH) |
941mm*724mm*498mm |
| Working Area |
508*305mm |
| Table Size |
557*357mm |
| Z Axis Height |
113mm |
| Max Work Height |
110mm |
| Max Work Size |
513*313*110mm（Support front pass through-door） |
| Max Table Load |
10KG |
| Net Weight |
77KG |
78KG |
| Repeated Positioning Accuracy |
0.01mm |
| Max Speed |
1000mm/s |
1500mm/s |
| Acceleration |
3G（30000mm/s2） |
5G（50000mm/s2） |
| Rotary Work Diameter |
0~90mm |
| X Axis Motor（Basic step Angle） |
High speed stepper motor（0.72?） |
| Y Axis Motor（Basic step Angle） |
High resolution stepper motor（0.36?） |
| Work Table |
Honeycomb Table |
| Laser Head |
2.5"(Standard), 1.5" & 4" lens kits Optional |
| Lens Diameter |
20mm |
| Mirror Diameter |
25mm |
| Beam Comb. Dia |
25mm |
| Laser Beam Expanders |
3xLaser Beam Expanders |
| Laser Tube Brand |
SPT 30W RF Tube |
Coherent 30w CO2 RF laser tube（USA） |
| Laser Output Power |
32-35w |
38-40w |
| Laser Output Laser Beam Diameter |
SPT 30W（1.8±0.2mm），Coherent30W（1.8±0.2mm） |
| Machine Cooling System |
Air-Cooled |
| Exhaust System |
Exhaust diameter100mm |
| Interface Hardware |
USB: connect to PCand U-disk / Ethernet: connect toPC /USB flash disk |
| Buffer Memory |
1024MB（1G） |
| Door Protection Sensor |
10 sensors |
