FORMART SE Vacuum Former (Special Edition)
Myyard is a world leader in the design and manufacture of vacuum former, downsized from the factory, but with no loss of power, optimised specifications and performance, and the ability to turn "ideas" into "business".

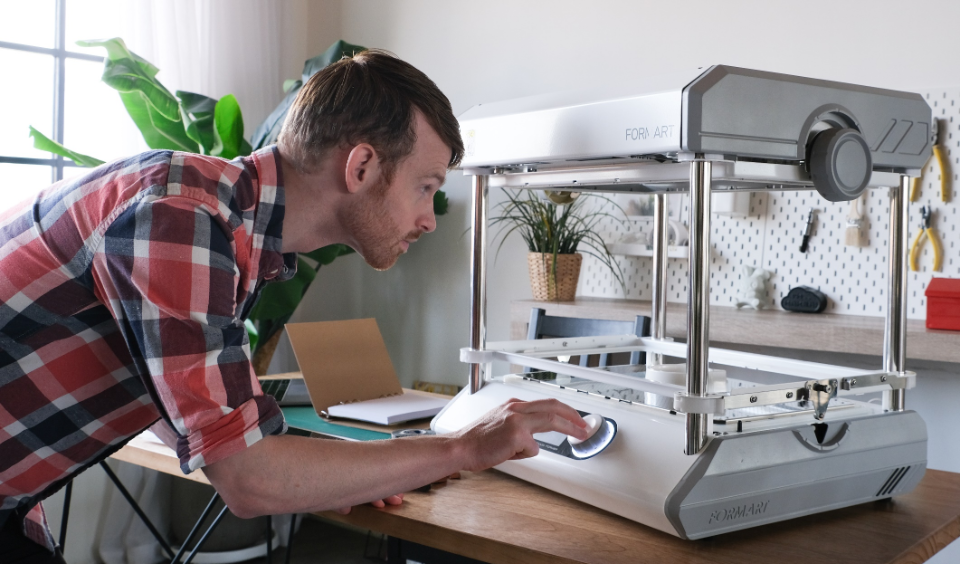

Desktop Vacuum Former with Industrial Performance
After 2 years, MY YARD leads the world with the first intelligent tabletop vacuum former! In addition to reducing the size of an industrial vacuum former and optimising its specifications and performance, FORMART SE has even been made "smarter", significantly lowering the user's technical threshold. 2019: Launch your fundraising platforms in Taiwan and reach 427% of the target amount. Whether for home use, business start-up or even small production, the FORMART SE meets all your expectations of a vacuum former.
Exclusive suction control technology that is not only powerful, but also frees up the moulding process
Vacuum Former aren't the most powerful, it's the ability to control the suction power that makes the difference. Not only does the FORMART have industrial-grade suction power of up to -90 KPA, it also has a built-in vacuum sensor and exclusive flow control technology that allows you to set your own FORMART vacuum level. Don't worry if you are not a professional user, FORMART offers three intelligent suction modes, just press the button and set the complicated parameters for you directly so you can start moulding without any hassle! FORMART will change the way you think about vacuum forming.
The largest size on the market, four sizes to choose from
FORMART SE has the largest mould size on the market and the ability to switch between sizes, from small earrings to large lampshades, which not only gives you maximum flexibility when working but also significantly reduces your plastic sheet waste!
Modular Design, Easy Maintenance
FORMART SE was designed from the beginning with easy maintenance as a priority, so the whole machine adopts modular design, every time you turn on the machine, it will carry out self-test, as long as the machine fails, the screen will prompt you with the faulty module, you only need to easily remove the faulty module and send it back for replacement.
Complete Sheet Database：
FORMART has the world's most complete database of plastic sheets, making it easy to create jobs with or without original plastic sheets. There are also five memory banks for quick and easy recall of customised job parameters.
Exclusive Sheet Dehumidifying Function：
The world's only vacuum former with built-in plastic sheet dehumidification function, which can automatically control the dehumidification parameter for different plastic sheet materials, so that damp plastic sheets do not cause air bubble defects or are discarded during forming.
Exclusive Preheat Setting：
The built-in heater preheat programme greatly improves the quality of the moulding process and allows a wide range of technical plastics to be moulded, making FORMART the most versatile vacuum moulding machine in terms of the number of plastics that can be moulded.
The Whole Area is Heated Evenly and Quickly：
By using an industrial grade carbon fibre quartz heating tube, the heating speed is 3 times faster than that of ordinary small vacuum forming machines! In addition, the feature of uniform heating over the whole area ensures that the moulding quality is as exquisite as that of a professional moulding machine.

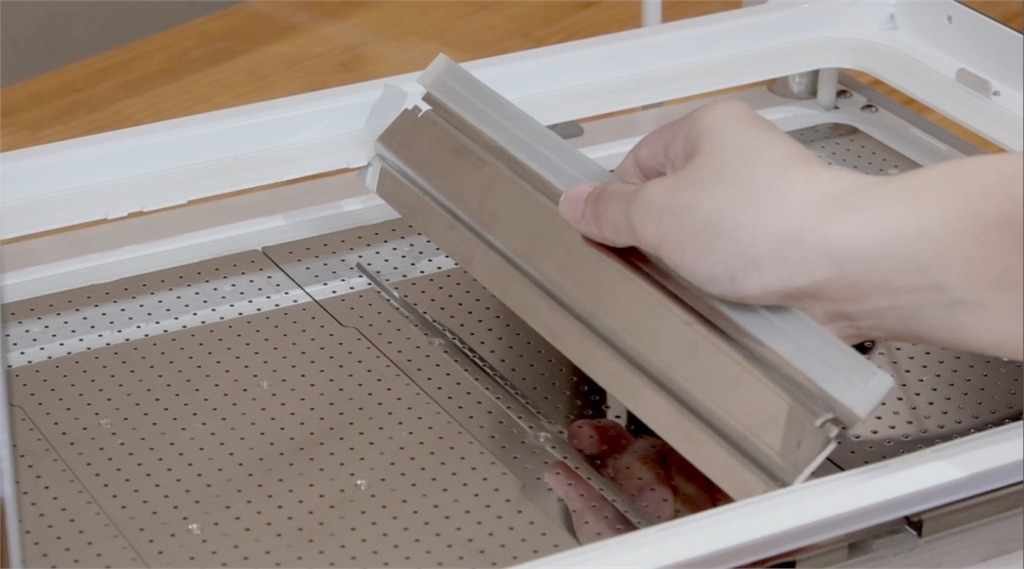

Quick Lock Plate, Stop Anywhere Safety Bracket：
With the exclusive patented quick locking plate, the plastic plate can be locked instantly by turning the handle so you don't have to touch the high temperature plastic plate holder, eliminating the possibility of burns. In addition, this pallet does not use the linkage mechanism that can pinch your fingers but still has the function of stopping the pallet at any height, so you don't need to remove the moulds and you can quickly put in the next pallet, with high working efficiency!
100% Made in Taiwan! The longest Warranty in the Industry：
FORMART is 100% produced, manufactured and R&D in Taiwan, every detail has been adjusted and designed many times, and the whole machine is manually tested to ensure quality. The core components have the industry's longest 2-year warranty! And the whole machine is commissioned by the German Rheinland Laboratory for product safety certification, so you do not have to worry, safety, peace of mind is guaranteed!
Product Included：
• 30cm x 20.5cm HIPS * 30 sheets
• One set of cat bowl molds
• Sheet size changing kit
• Webbing remover kit
• USB cable
• Heat-resistant gloves
• Basic tool kit
| Dimensions |
625(W) x 534(H) x 476(D)mm |
| Weight |
25Kg |
| Power |
100~120VAC@1500Watt |
| Display |
3.5” 480*320 Full Color LCD |
| Heater |
Quartz heater tube |
| Heating Temperature |
90~230?C |
| Sheet Size |
500×300mm;420×300mm(A3) / 300×300mm;300×205mm(A4) |
| Sheet Thickness |
0.3~3.0mm |
| Pump Type |
DC brushless pump *1、AC induction pump*1 |
| Pressure Range |
-10/-20/-90KPA (Tunable） |
| Max. of Draw |
160mm Max |
