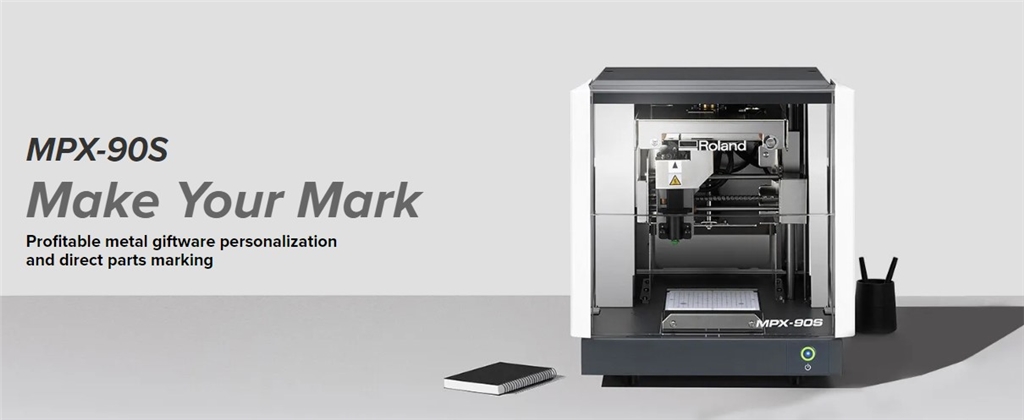

Roland Photo Impat Printer MPX-90S
Perfect for kiosk and gift shop applications, the new VersaSTUDIO MPX-90S metal impact printer, easy-to-operate solution for personalizing high-value metal items and making them even more unique and profitable an it complies with UDI* standards for medical equipment.
* From 2020, the US FDA will require medical device labelling machines and all medical devices (Class I, Class II and Class III) to comply with UDI standards.

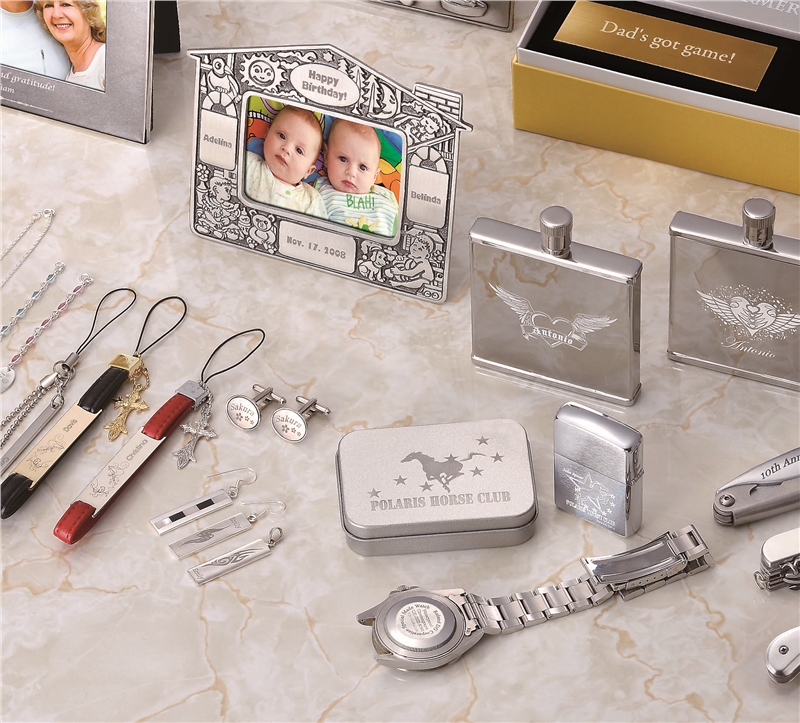

Personalize Hundreds of Metal Items

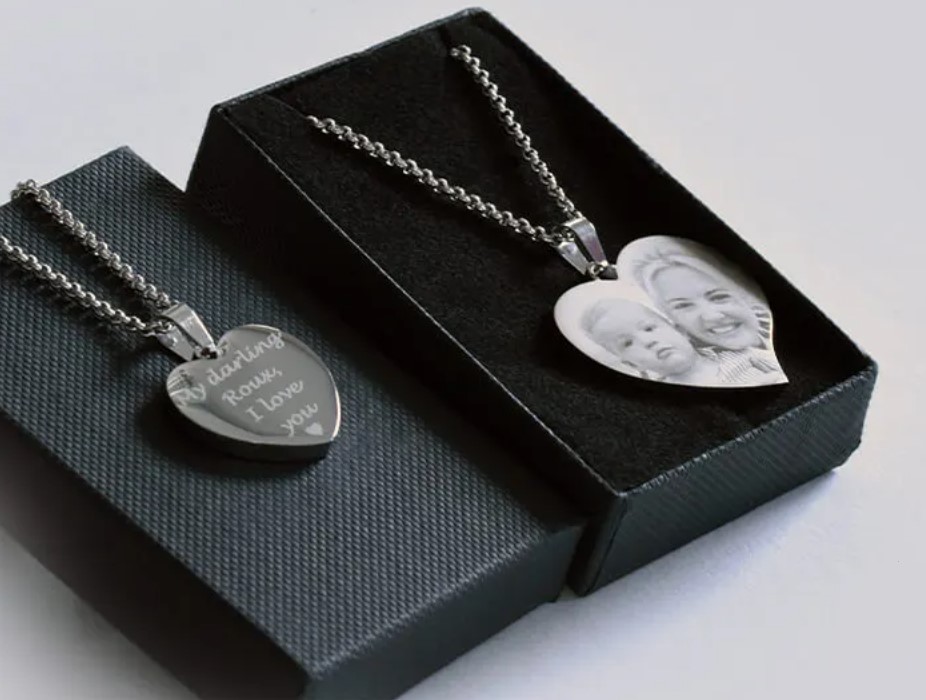

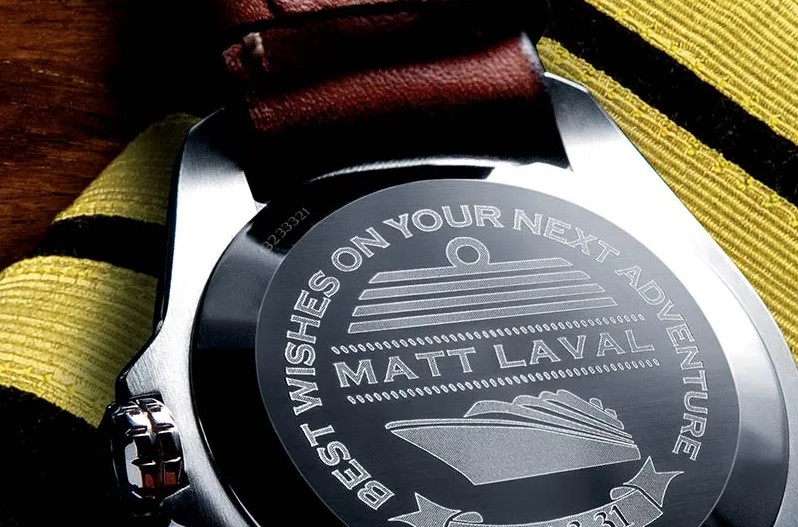

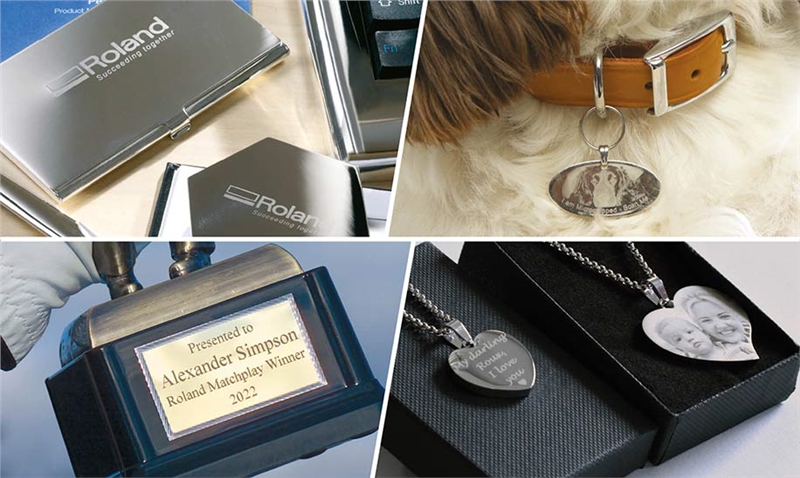

MPX-90S personalization options include Pens and business card holders, smart devices, jewelry, sunglasses, watches, trophy plates, dog tags and more!

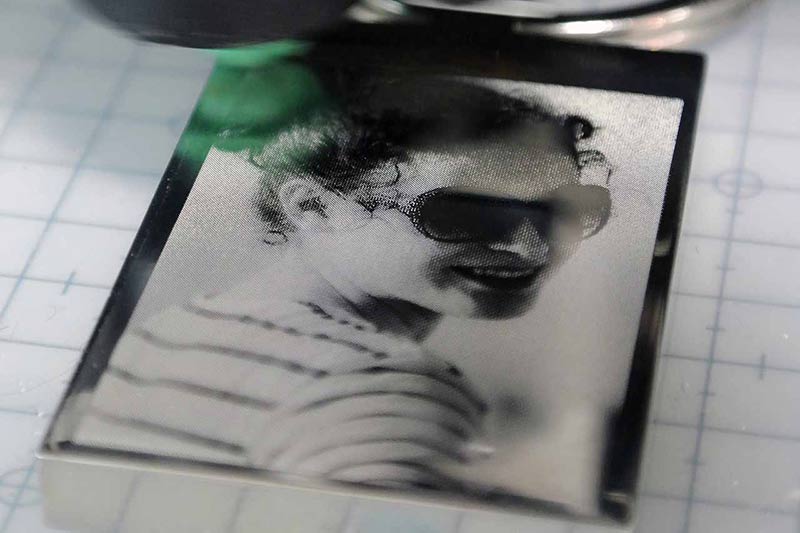

Imprint Photographs, Vector Graphics and Text
A durable diamond-tipped stylus strikes the material with high speed and precision to reproduce the most delicate gradations and finest fonts. The results are exceptional, with detailed graphics and fonts that stand out.

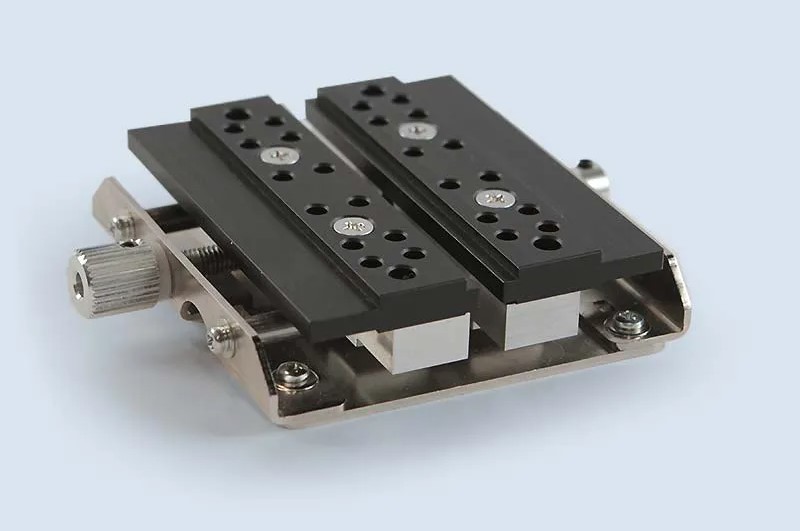

Included Center Vise
If you are printing a large number of different items in quick succession, the fixed centre vice allows you to set up and personalise items quickly.

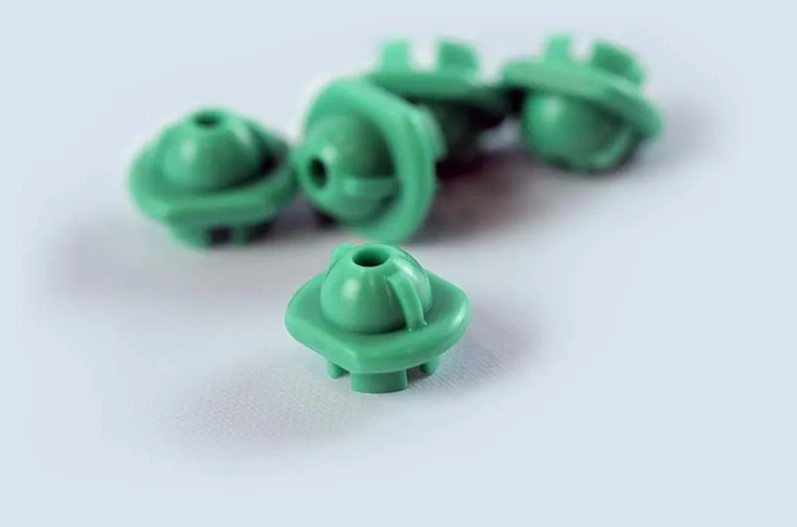

Head Caps
Used to attach to the head unit of the MPX-90S for printing on curved and flat surfaces, thirty rounded and ten flat head caps are included.
More Precision, Less Fuss
Without dirt, noise or odour, users can add photo-quality detail and complex barcode data to a printable area as small as one square millimetre and as large as 80 millimetres. There's far greater accuracy and far less clean-up with an MPX-90S photo impact printer.
Other Distinguishing Features
• Diamond-tipped stylus marks silver, copper, platinum, brass and aluminium up to 200HV
?• Easy to use METAZA Studio software included
?• Automatic surface recognition
?• Variable data printing capabilities for sequential data application
?• Compact and fully enclosed - operates quietly and safely in any kiosk, store or lab
The compact, enclosed housing is ideal for quiet, safe operation in medical and laboratory environments to get the best out of your tools or fine products, so contact us now and put this right-hand man to work for you!
| Model |
MPX-90S |
| Imprintbe Material |
Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, titanium, etc.
(Vickers hardness [HV] of the imprint surface must be 200 or less.) |
| Base plate only |
Loadable material size |
100 x 200 x 70mm/200mm x 100mm x 70mm |
| *The above are for when the cover is closed. When the cover is open, there is no limit on how large the material can be, but the imprint area of the material must be placed within the imprint area. |
| Imprint Area |
Maximum imprintable area |
80 x 80 x 70 mm |
| Recommended imprint area |
50 x 50 x 70 mm |
| Resolution |
High resolution |
529 dpi |
| Photo |
353 dpi |
| Text |
265 dpi |
| Vector |
1058 dpi |
| Imprint direction |
Unidirectional imprinting or bidirectional imprinting (Selectable with Windows driver) |
| Imprint speed (Default) |
High resolution/Text |
33 mm/sec |
| Photo |
50 mm/sec |
| Vector |
24 mm/sec |
| Interface |
USB |
| Power requirements |
Dedicated AC adapter |
Input：AC 100 to 240 V ± 10 %，50/60 Hz |
| Output：DC 19 V/1.2A |
| Power consumption |
Approx. 21 W |
| Operating noise |
70 dB (A) or less (in accordance with ISO 7779) |
| Operating Environment |
Temperature |
10 to 30°C |
| Humidity |
35 to 80% |
| External dimensions |
286 x 383 x 308 mm |
|
