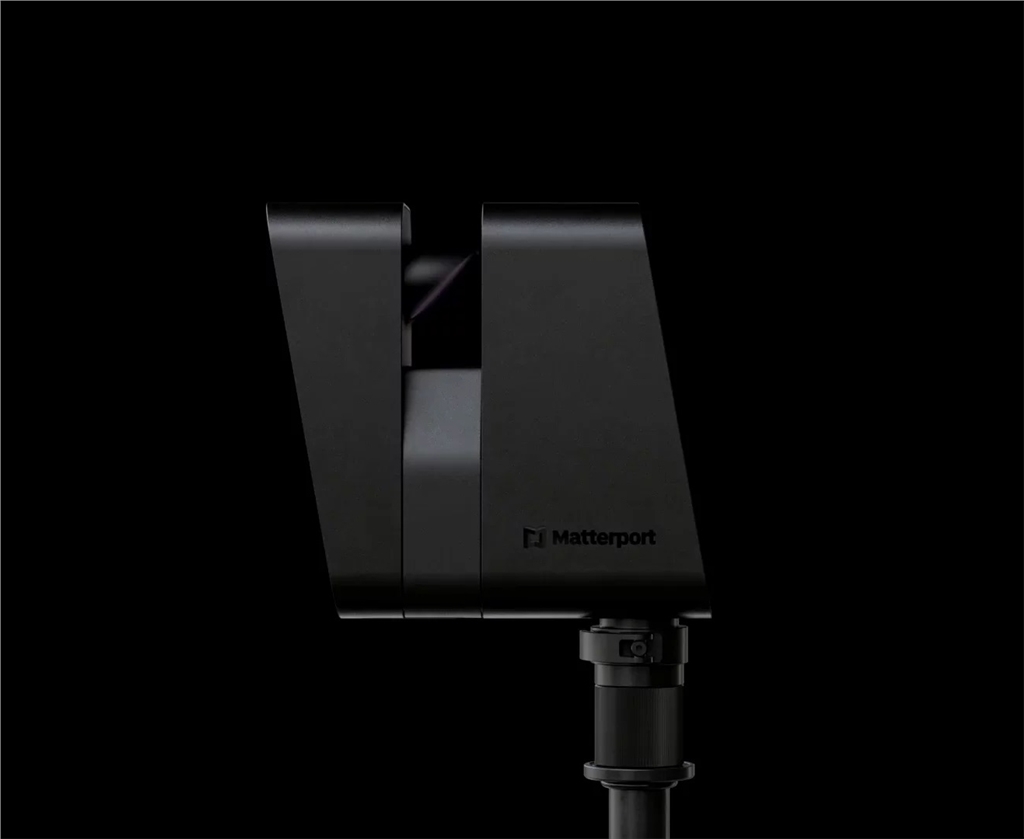

Matterport Pro3 Lidar 3D Scanner
Purchase a Matterport plan to use, click here for the price.
Transferring the real environment to the virtual world

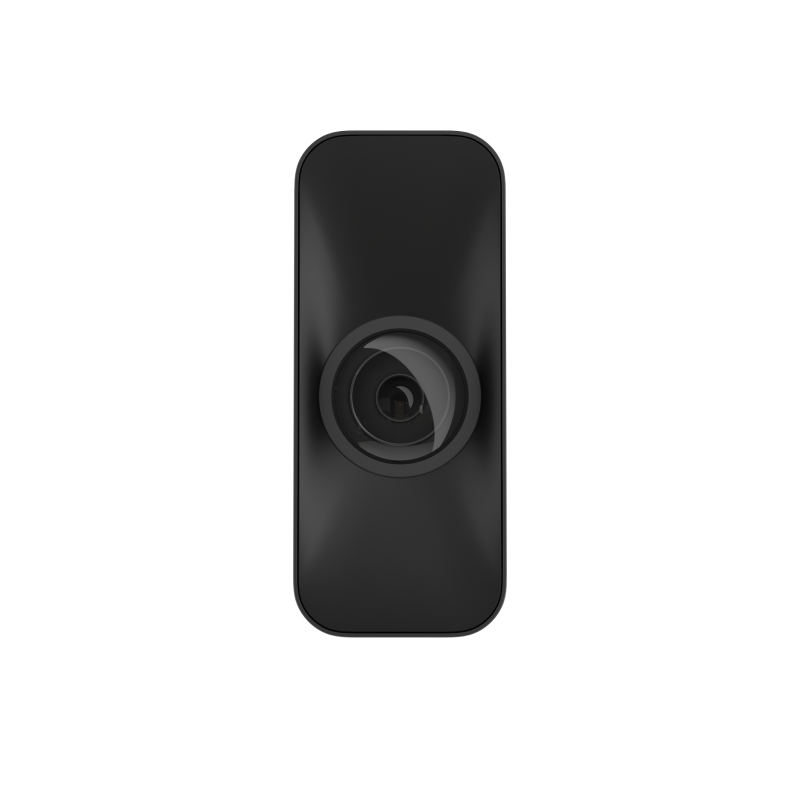

The Ultra-wide angle 20MP sensor with a custom 12-element lens, producing precise, detailed digital version in vivid, realistic colors that make you feel like you're part of it.
．No longer restricted space and day time!

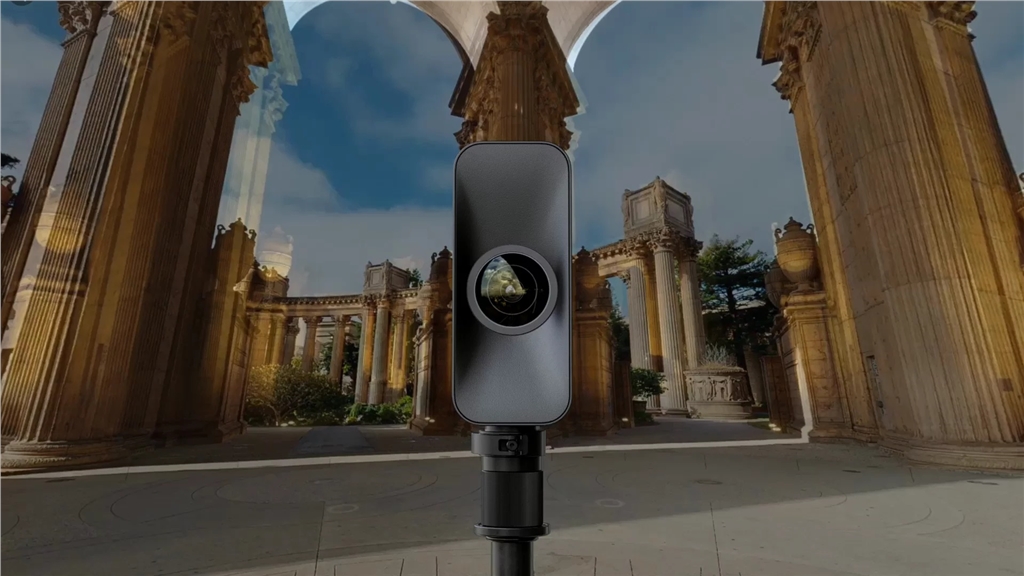

No longer limited to indoor spaces, Matterport pro3 features a breakthrough innovation in LiDAR that allows millions of measurements from dimly lit spaces to direct sunlight, giving you an immersive experience of the outdoors.
．Upgraded Accuracy
Matterport Pro3 with its proprietary cloud-based platform provides more accurate, detailed and realistic digital version than ever before.
．Expanded scanning area and faster scanning speed
Captures 3D data up to 100 meters away with less than 20 seconds per scan, speeding up the scanning process and saving operation time.
．High performance and high precision LiDAR

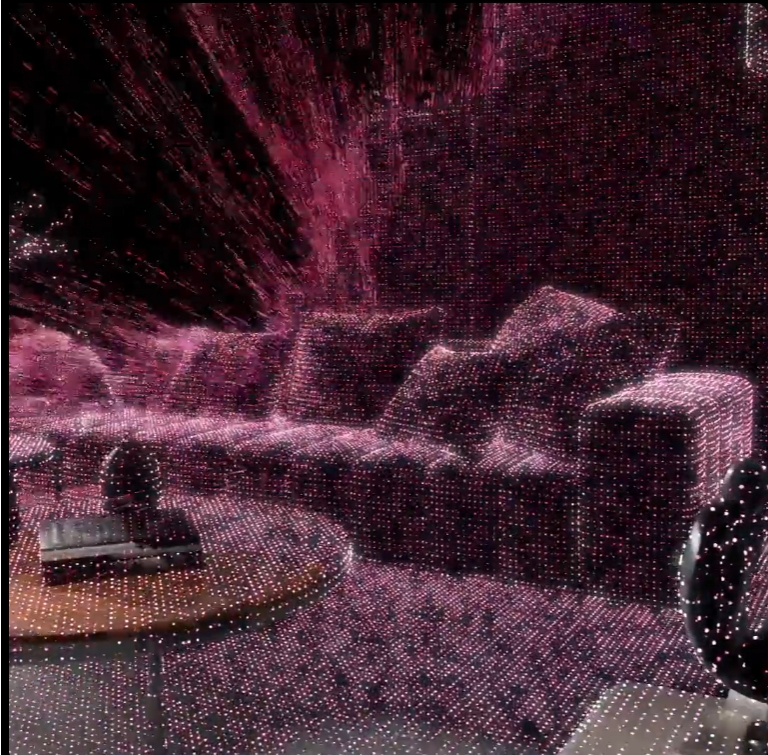

Matterport Pro3 can utilize ultra-fast, high-precision LiDAR scanner for hours, making millions of measurements under any conditions.
．Upgarded portability
Matterport Pro3 is lightweight and easy to carry around all day. The rechargeable battery can be replaced and can also scan continuously until the entire operation is completed.

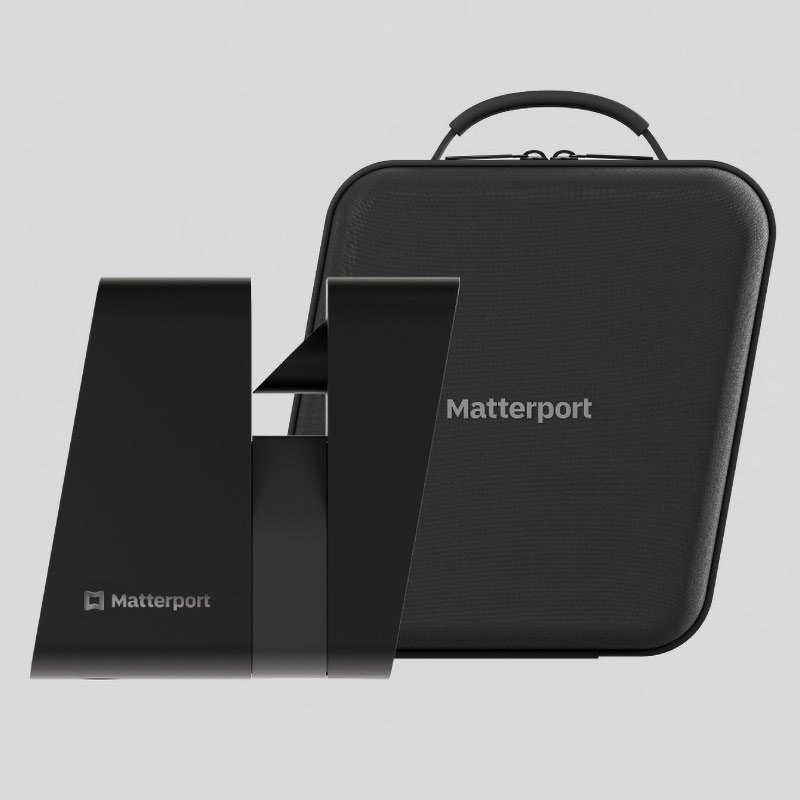

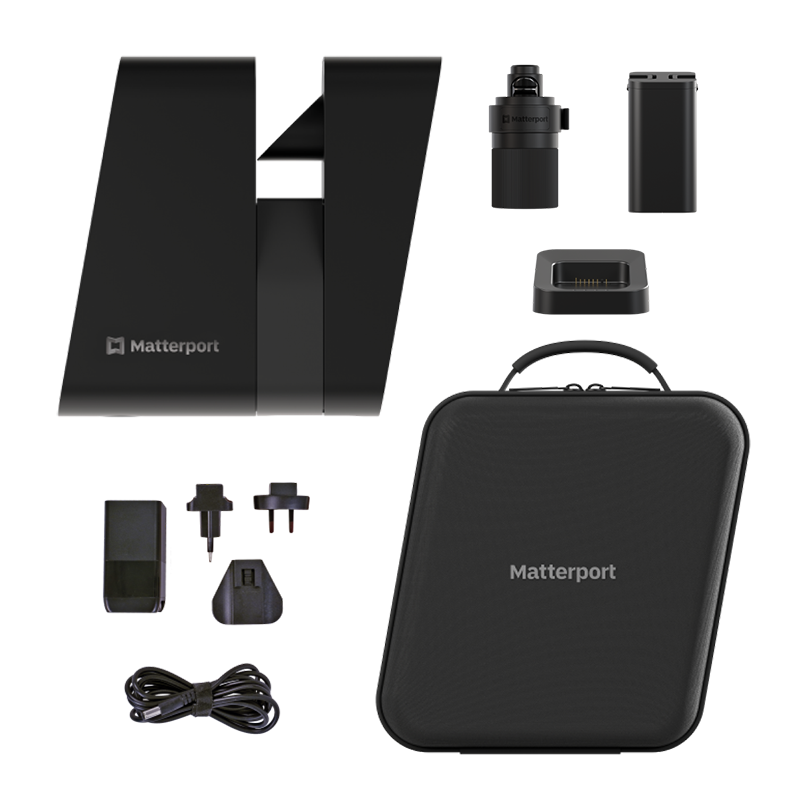

Products Included :
Matterport Pro3
1 Tripod Mount
1 Battery
1 Charging Set
1 year warranty
Matterport PRO3 Only supports Professional and above plans
With the Matterport PRO2 3D scanner, you can obtain high quality quickly and easily, high precision 2D floor plans, 3D virtual space, and connect your space to the world with just one click.
Contact us for more details on our 3D printing equipment.
|
Size
|
181mm x 161.4mm x 76m
|
|
Weight
|
2.2kg
|
|
Battery
|
> 220 scans，Assuming continuous scanning
|
|
Battery Charging Time
|
80% charged in 2.5hrs
100% charged in 3.5hrs
|
|
Mounting Structure
|
Quick-release tripod；Inner thread 3/8-16 thread
|
|
GLobal GPS System
|
Yes
|
|
Operating Temperature Range
|
0°C-40°C
|
|
Storage Temperature Range
|
-20°C-60°C
|
|
Grade of Waterproof and Dustproof
|
IP43
|
|
Scanner Technology
|
Lidar
|
|
Safety
|
Class1 Safety level
|
|
Wavelength
|
904nm
|
|
View field
|
360° H / 295° V
|
|
Accuracy
|
±20mm @ 10m
|
|
Resolution
|
100k points/s，1.5M points per scan
|
|
Minimum Operating Range
|
0.5m
|
|
Maximum Operating Range
|
Longest 100m（Only applicable for E57）
|
|
3D Data Registration
|
Automatic
|
|
Panoramic Output Pixel
|
Lidar
|
|
Number of Exposures for Each HDR Frame
|
5
|
|
White Balance
|
Fully automatic
|
|
Scan Speed
|
Single Scan < 20s
|
|
Boot Up Speed
|
< 40s
|
|
Remote Operations
|
Matterport Capture APP
Supports apple and android
|
