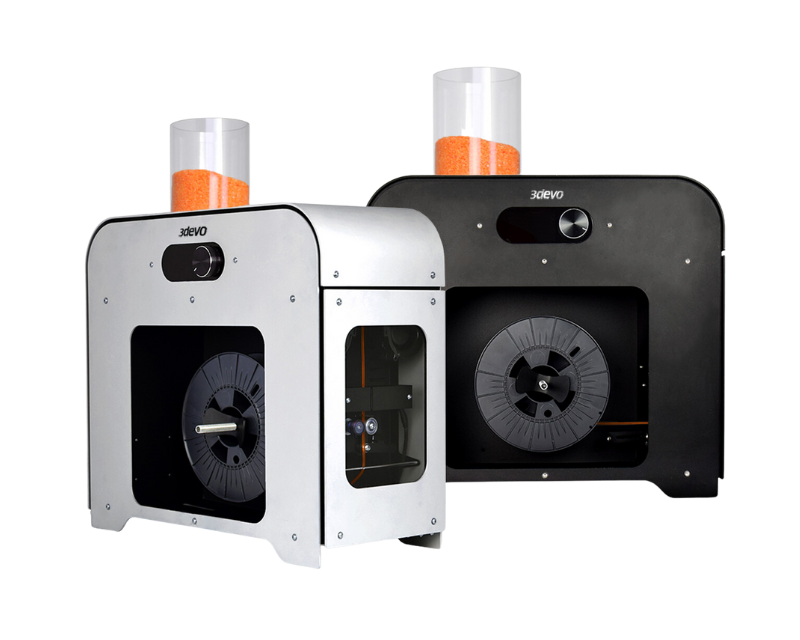

3Devo Filament Maker ONE Series - Precision / Composer
Early models of wire extruders provided the pioneers of 3D printing with reliable extrusion and material versatility
Unsatisfied with the final product? Printing model with filaments that emits excess material? Here's a solution for you in this new eco-friendly era! 3Devo's Filament Maker ONE range of filament makers mix materials to create new filament, a great way to recycle, make the most of your wire and save some money! There are two models to choose from, the Composer and the Precision.

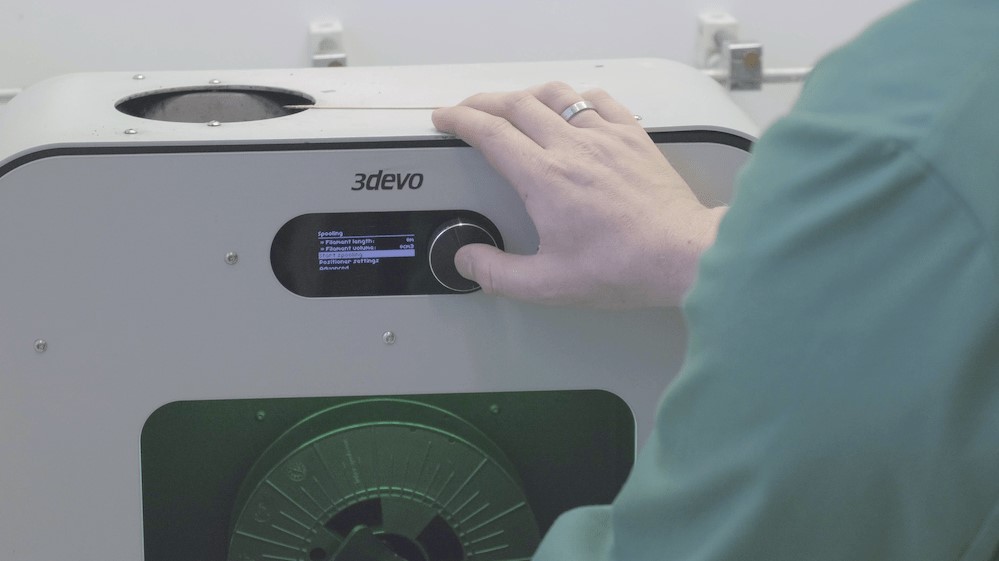

Intuitive Control Pannel
• Streamlined Interface : Navigate with ease through an OLED display and a simple rotate-and-push button.
?• Quick-Set Profiles : Jumpstart your projects with standard material presets (PLA, ABS, PA12, PC, PEEK, and PS) or tailor custom profiles for unparalleled results.

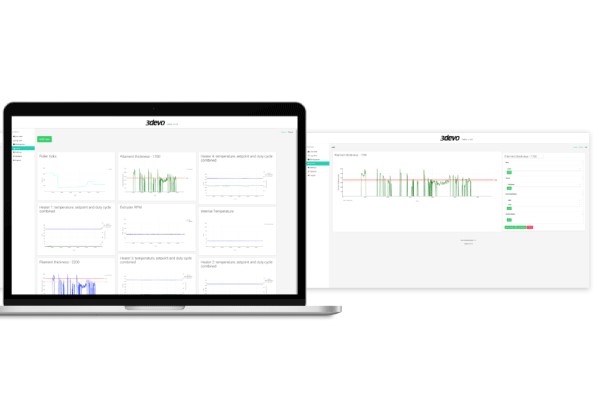

Comprehensive Data Monitoring
?• Live Process Insights : Monitor key metrics like heater settings, filament thickness, and motor current in real time to maintain precise system control.
• Detailed Analytics : Track puller speed and screw RPM, all visualized in graphs, and easily export the data to Excel for further analysis.
• Optimize Performance : Leverage this comprehensive data to fine-tune your material settings, ensuring consistent, high-quality filament production.
Robust and Advanced Components

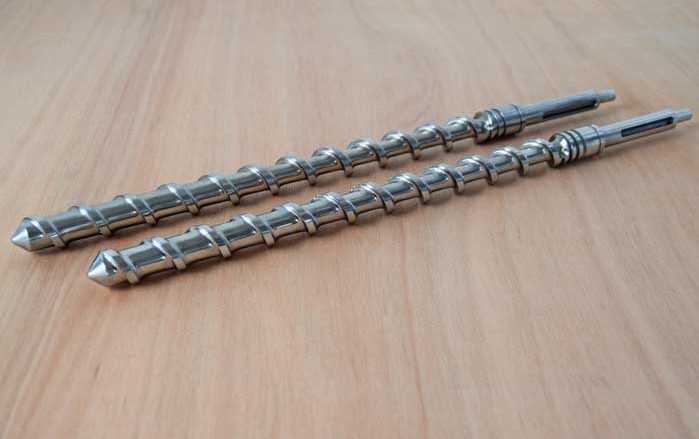

?• Industrial-Grade Extruder Screw : Nitride-hardened for durability, with a mixing capability for homogeneous filament blends.
?• Versatile Extruder Mixing Zone : Experiment with various additives, plastics, fibers, or powders to create custom filaments tailored to your needs.
?• Smart Material Handling : Includes an optical hopper sensor for material level monitoring.
Precision and Quality
• Vertical Extrusion : Guarantees precise filament roundness and direct spooling, enhancing the quality of your 3D prints.

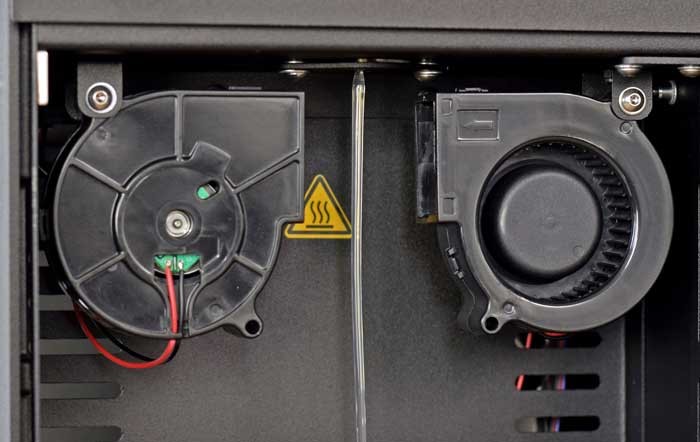

• Cutting-Edge Cooling and Spooling : Enhanced by a balanced dual fan system for even cooling and a precision spooling setup with an adjustable positioner and automatic spooling function.

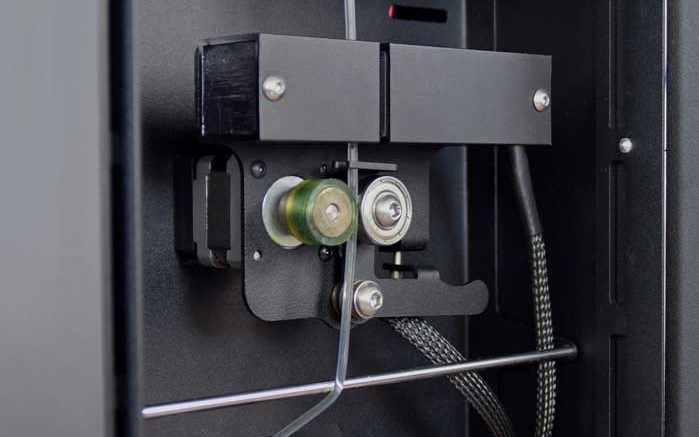

Advanced Optical Sensor and Puller
• Unparalleled Accuracy : The optical sensor measures filament diameter with 43-micron precision.
• Adaptive Puller System : Adjusts speed for consistent diameter control, with interchangeable wheels for various temperatures.

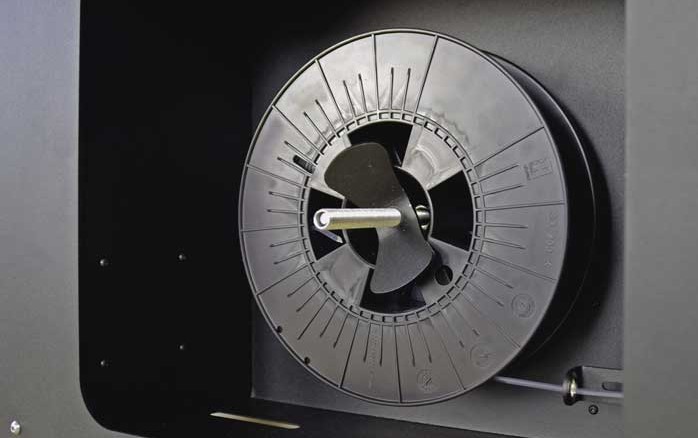

Efficient Spooling Mechanism
• Adaptable Spool Mount : Supports various spool sizes for flexibility in filament production.
• Customizable Spooling : Set specific dimensions for perfectly wound spools, while the built-in slipper clutch adjusts tension for smooth operation.
• Precision Spooling : Ensures tidy, tangle-free spools, supporting up to 240mm diameter and 120mm width.

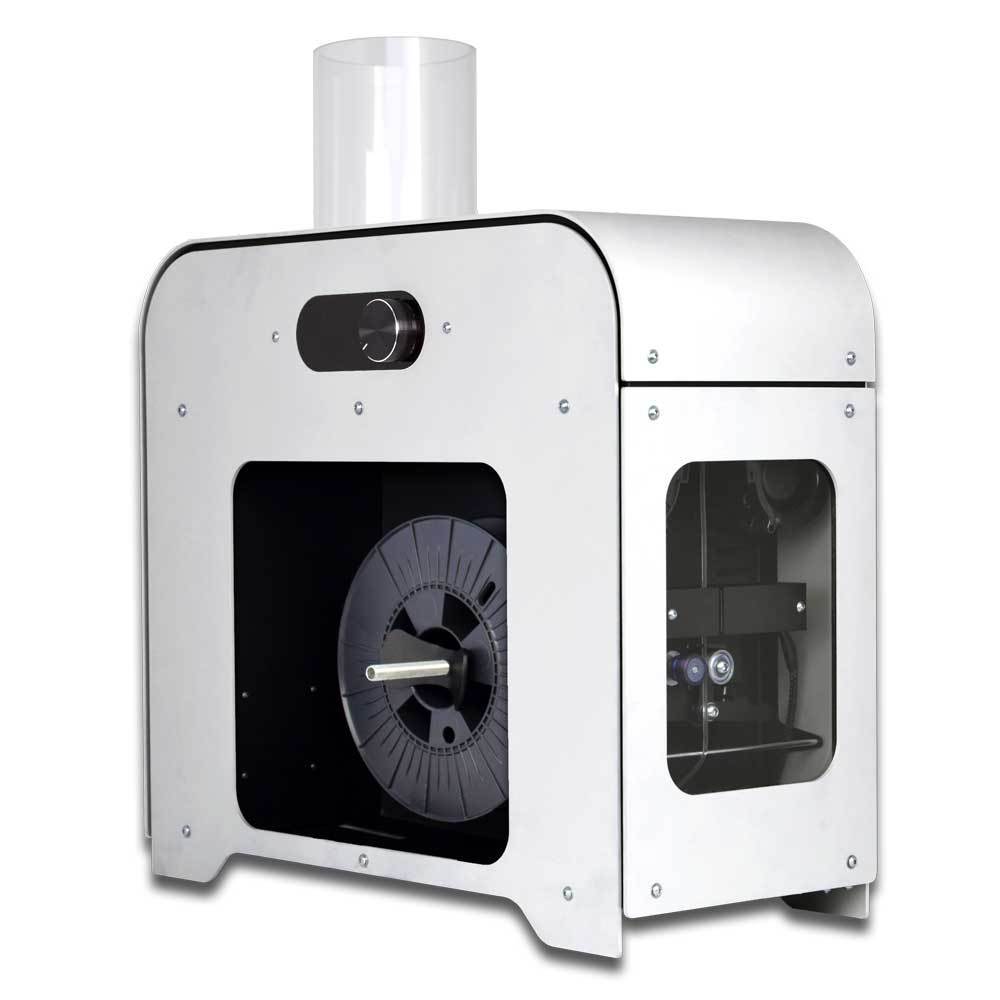

Filament Maker One - Composer：
For mixing, compounding & experimentation
Screw Length : 335 mm, ensuring extensive material interaction for uniform filament properties.
Screw Material : Made of hardened nitride steel for durability and longevity.
Design Features : Includes a compression zone and a built-in mixing section, enabling the production of consistent and well-blended filaments.

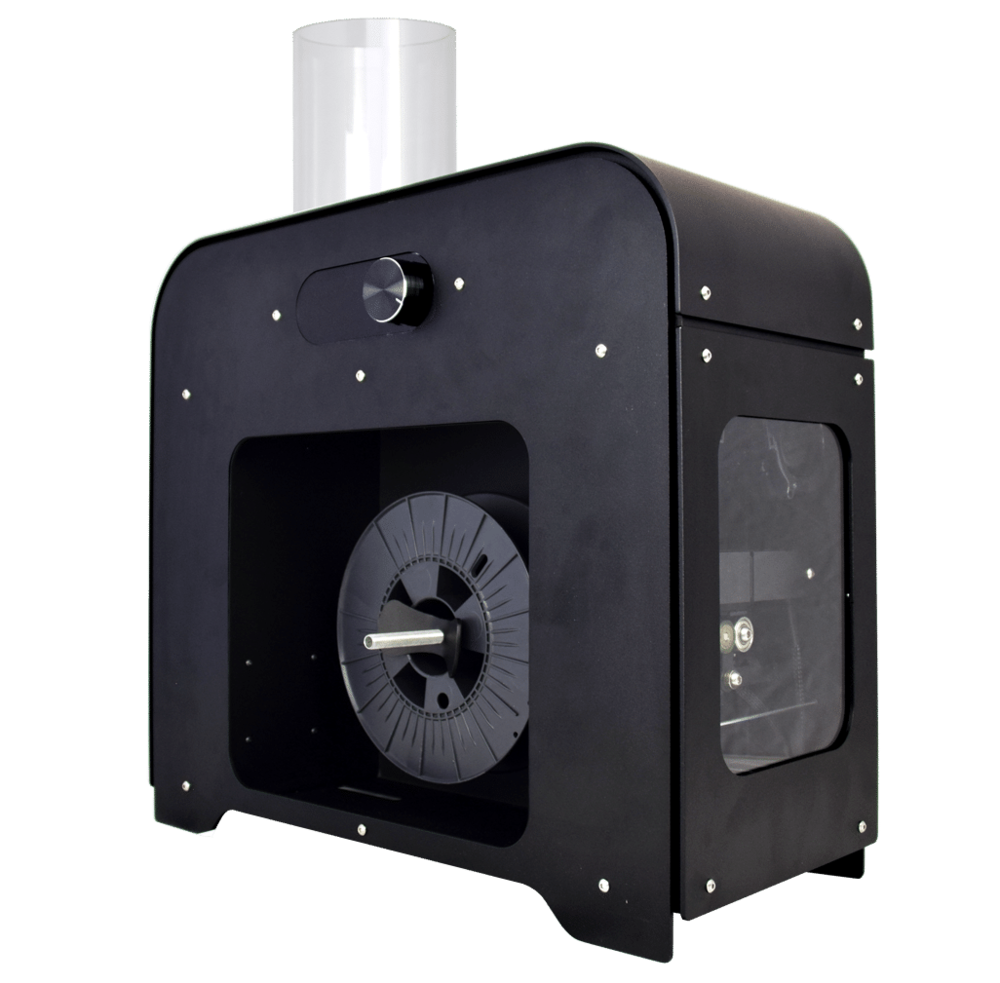

Filament Maker One - Precision：
For high-quality mass production
Screw Length : 335 mm, precision-screw designed for optimal material processing and filament consistency.
Material : Constructed from hardened nitride steel to ensure durability and resistance to wear.
Design : Features a compression zone for enhanced material handling and filament quality.
Do you have a question? Contact us for more information on 3Devo!
